Xtra UFO High Bay LED Light 100W To 240W 3 Hours Emergency 4000k 0-10V Dimmable Daylight & Movement Detection 50000 Hours lifespan
Key Features:
- LED: Osram
- Driver: Meanwell
- 0-10 V dimmable
- Adjustable beam angle, 60°/90°/110° on options
- Luminous Efficiency: 155 lm/w
- CRI>Ra70
- CCT:3000K-5700K
- Ranges from 100W – 240W.
Xtra UFO Highbay LED Light
Xtra UFO high bay LED light is an exquisite professional industrial light. It adopts thick carved die-casting heatsinks and looks more like an artwork than a bay light. The polished anti-corrosion powder coated surface carefully protects every core component from damage. Wherever installed, it is pleased to human eyes.
Attractive high lumens output shines workshops, garages, warehouses, halls, supermarkets to be an incredibly bright beautiful scenario. The UFO high bay has a 6063 aluminum shell that builds its strong structure and stable cooling system to maintain 50000 hours of longevity. Totally compliance to WEEE, its connections after the terminal block is in plug form.
The X UFO highbay LED light its Versatile lenses can be adjustable among 60°/90°/110°based on project requirements by a simple finger twist. Integrated intelligent sensor motions light and moving human at the height up to 15 Ms and improve energy management automatically once after initial settings.
Product Key Features
Xtra UFO high bay LED light is the perfect LED lighting solution for your shop, showroom, warehouse or indoor sports center.
Before
After
Key Features
- 6063 aluminum built good cooling system
- Versatile lenses changeable among 60°/90°/110°
- Anti-glare hood is available
- UGR<21
- SUS 316 stainless steel bracket or hook available.
- 1-10V dimmable
- Supports Dali/Zigbee/DMX Control, time control, light ratio control and RGBW control.
- Daylight sensor/Motion sensor on optional
- Black/ White/ Grey on Optiona
- Ranges from 100W - 240W.
Photometric Diagram
Suitable Applications
- Shop
- Showroom
- Warehouse
- Indoor Sports Center
Benefits
- Low initial cost
- Low energy management cost
- Easy installation and maintenance
- 5-year Warranty for luminaire body, LED modules, and driver
- FREE Lighting Calculation

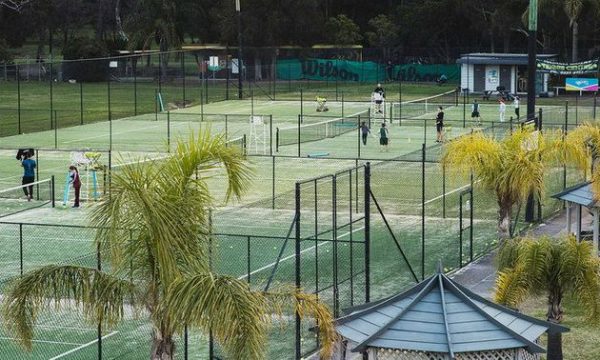

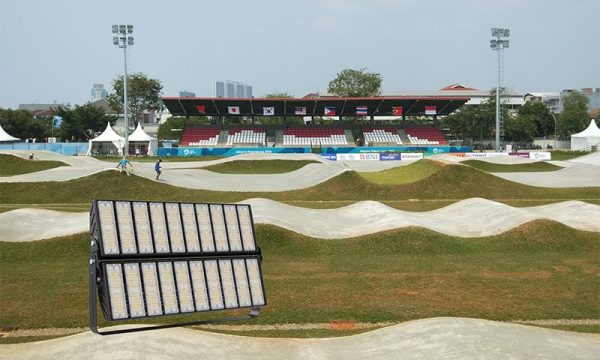

Recent Outdoor LED Lighting Projects
X UFO high bay LED light is the perfect solution for your shop, showroom, warehouse or indoor sports center.
If you are looking for a professional lighting solution for warehouse，production lines, showrooms, supermarkets, indoor tennis courts, indoor basketball fields, indoor badminton courts, and any other indoor facilities, you can find the best one here.
We will provide you a Free Lighting Calculation, tell you how to set the posts and offer installation guides here.
Xtra UFO High Bay LED Light Specifications
| Technical Reference | 240W |
| LED | Lumileds 2835 |
| Flux | 36,000 lm |
| CCT | 3000-5700 K |
| Beam Angle | 60°/90°/110 ° |
| Input Voltage | AC 90-305 V |
| Driver | Meanwell |
| Material | Die-casting |
| Diametre | 266*83 mm |
| Microwave sensor | Optional |
| Net weight | 1.9 Kg |
| Ingress Protection | IP65 |
| CRI | >70 |
| Technical Reference | 200W |
| LED | Lumileds 2835 |
| Flux | 30,000 lm |
| CCT | 3000-5700 K |
| Beam Angle | 60°/90°/110° |
| Input Voltage | AC 90-305 V |
| Driver | Meanwell |
| Material | Die-casting |
| Diametre | 266*83 mm |
| Microwave sensor | Optional |
| Net weight | 1.9 Kg |
| Ingress Protection | IP65 |
| CRI | >70 |
| Technical Reference | 150W |
| LED | Lumileds 2835 |
| Flux | 22,500 lm |
| CCT | 3000-5700 K |
| Beam Angle | 60°/90°/110° |
| Input Voltage | AC 90-305 V |
| Driver | Meanwell |
| Material | Die-casting |
| Diametre | 266*83 mm |
| Microwave sensor | Optional |
| Net weight | 1.9 Kg |
| Ingress Protection | IP65 |
| CRI | >70 |
| Technical Reference | 100 W |
| LED | Lumileds 2835 |
| Flux | 15,000 lm |
| CCT | 3000-5700 K |
| Beam Angle | 60°/ 90°/110 ° |
| Input Voltage | AC 90-305 V |
| Driver | Meanwell |
| Material | Die-casting |
| Diametre | 266*83 mm |
| Microwave sensor | Optional |
| Net weight | 1.9 Kg |
| Ingress Protection | IP65 |
| CRI | >70 |
Enkarl Outdoor LED Lighting Products Certificates
In compliance with stringent test standards, all Enkarl’s products are tested and certificated by CNAS/CRM/A2LA/NVLAP approved lab. Test contents include photometry ( LM79/LM80), thermal management (TM21), performance, blue light hazard, electrical and electromagnetic compatibility, vibration, water-proof, impact resistance.
IEC 60068-2-6 / IEC 60529 / IEC 62262 / EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547 / EN 60598 / EN 62493 / AS CISPR15
