Phoenix Outdoor LED Floodlight | Sports Floodlight | Area Lighting | Stadium Floodlight 1800W
Key Features:
- Range from 600W – 1200W: 600W / 1200W / 1800W
- Individual smooth oval angle module to slow down wind velocity on the post.
- Symmetrical and asymmetrical beam angles
- Thin and deep aluminum Fin heat sinks for maximum cooling and minimum weight 5. Sectored Locking design takes in triangle stability to fasten an accurate aiming angle.
- High CRI up to 95 presents this world as colorful as possible, which is not only good for sports floodlighting but also a showroom and photographing lighting
- AkzoNobel maritime powder-coated surface
- Protractor calibration on the locking surface makes aiming easy.
- Anti-UV tempered glass cover
- Anti-condensation breather to stop moisture accumulation caused by temperature fluctuations.
- H05RN-F rubber cable with bird-proof sleeves.
- Philips LEDs and Meanwell Driver/ IP67/IK10/20 KA Surge protection
- Supports Dali/Zigbee/DMX Control, time control, light ratio control, and RGBW control.

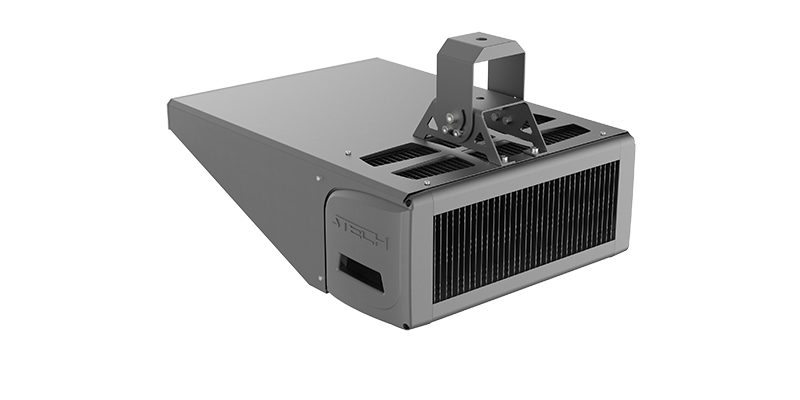

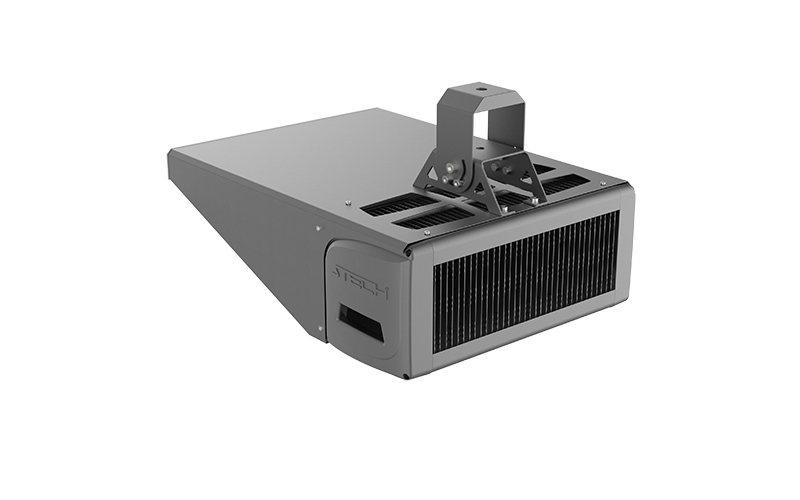

Phoenix Series Outdoor LED Floodlight For Stadium / Sports Floodlight
Phoenix Series Outdoor LED Floodlight For Stadium / Sports Floodlight: The Phoenix stadium floodlight is designed to provide superior lighting solutions for areas requiring strict control of floodlighting and glare, such as residential areas, port facilities, natural parks, and HDTV sports facilities.
The asymmetrical photometric distribution is suitable for 110 x 68 m football fields, one of the largest sizes. With four 18-meter posts, each equipped with 1800W Phoenix lights, your football field will be well-lit from all four corners without tilt-up.
Pipe heat-dissipation and an individual gearbox are key to reducing the aluminum floodlight weight, with the 1800W Phoenix weighing only 26kg. Through careful design, it has an extremely short and compact structure; the 1800W Phoenix is just 777mm long and 305mm high. Due to its low weight and compact structure, the Phoenix is a fantastic solution for both newly-built and retrofit projects, replacing 2000W HID lamps.
The Phoenix Series LED Sports Floodlight Offers a Range of Features and Benefits
A Solution to Light Pollution
More and more sports facilities and recreational grounds are having to adhere to stringent criteria over the permissible level of light pollution. The Phoenix Series LED Stadium Floodlight provides asymmetric distribution to counteract light overspill giving you complete control over surrounding areas. The slider at the right side is an example of what can be achieved.
Photometric Diagram
Phoenix LED Floodlights Key Features
- Individual smooth oval angle module to slow down wind velocity on the post.
- Symmetrical and asymmetrical beam angles
- Thin and deep aluminum Fin heat sinks for maximum cooling and minimum weight
- Sectored Locking design takes in triangle stability to fasten accurate an aiming angle.
- High CRI up to 95 presents this world as colorful as possible, which is not only good for sports floodlighting but also a showroom and photographing lighting
- AkzoNobel maritime powder-coated surface
- Protractor calibration on the locking surface makes aiming become easy.
- 4mm Anti-UV tempered glass cover
- Anti-condensation breather to stop moisture accumulation caused by temperature fluctuations.
- H05RN-F rubber cable with bird-proof sleeves.
- Philips LEDs and Meanwell Driver/ IP67/IK10/20 KA Surge protection
- Supports Dali/Zigbee/DMX Control, time control, light ratio control and RGBW control.
Suitable Applications
- Soccer Field Lighting
- Tennis Court Lighting
- Bowling Club Lighting
- Rugby Field Lighting
- Basketball Field Lighting
- Mountain Bike lighting
- Baseball Field lighting
- Hockey Field lighting
- Volleyball Field lighting
- Coastal Area lighting
Benefits
- Low initial cost
- Low energy management cost
- Easy installation and maintenance
- 5-year Warranty for luminaire body, LED modules, and driver
- FREE Lighting Calculation
Phoenix Series LED Sports Floodlights Are Your Best Choices For Stadium Lighting.
If you require a professional outdoor lighting solution for yards, tennis courts, basketball fields, soccer fields, parliament MUGA fields, rugby fields, cricket fields, baseball fields, school playgrounds, ports, ships, stadiums, cranes, or other open areas, we can provide the best solution.
We will provide you with a Free Lighting Calculation and installation guidance.
Product Specifications
Phoenix Series Sports Floodlight Specifications
| LED Type | Osram P8 | Junction Temperature (Tj) | < 75 ℃ (Ta=30 ℃) |
| Driver | Inventronics Driver | Controls System | 0-10V Dimmable & DALI optional |
| Power Efficiency | 1800 W | Options | Up-20KA Surge Protection |
| Luminaire Efficacy | 140 lm/w | Optics | 10°/30°/Asymmetric C/Asymmetric S |
| Luminous Flux | 252,000 lm | Material | Aluminum Housing, A3/A4 Steel bracket, Tempered glass, Polycarbonate Lenses |
| Correlated Color Temperature | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K | Remarks | CE RoHS SAA RCM |
| CRI | Ra 70/80/90 optional | Ingress Protection Code | IP 67 |
| Operating Temperature Range | -40℃ to 50℃ | Mech. impact protection code | IK10 |
| Mains Voltage | 90～305V AC 50-60Hz | Dimensions | L620 * W660 * H370 mm |
| Output Voltage | DC 168 V | Warranty | 5 Years |
| Output Current | 10.75 A | Net Weight | 25 KG |
| Power Efficiency | 95% | Color | Black / White / Grey |
| Total Harmonic Distortion | < 15% |
| LED Type: | Osram P8 | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Inventronics Driver | Controls System: | 0-10V Dimmable & DALI optional |
| Power: | 1200 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 140 lm/w | Optics: | 10°/30°/Asymmetric C/Asymmetric S |
| Luminous Flux: | 168,000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Tempered glass, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L615 * W480 * H330 mm |
| Output Voltage: | DC 168 V | Warranty: | 5 Years |
| Output Current: | 6.5 A | Net Weight: | 19 KG |
| Power Efficiency: | 95% | Color: | Black / White / Grey |
| Total Harmonic Distortion: | < 15% |
| LED Type: | Osram P8 | Junction Temperature (Tj): | < 75 ℃ (Ta=30 ℃) |
| Driver: | Inventronics Driver | Controls System: | 0-10V Dimmable & DALI optional |
| Power: | 600 W | Options: | Up-20KA Surge Protection |
| Luminaire Efficacy: | 140 lm/w | Optics: | 10°/30°/Asymmetric C/Asymmetric S |
| Luminous Flux: | 84,000 lm | Material: | Aluminum Housing, A3/A4 Steel bracket, Tempered glass, Polycarbonate Lenses |
| Correlated Color Temperature: | 2700K / 3000K / 4000K / 5000K / 5700K / 6500K | Remarks: | CE RoHS SAA RCM |
| CRI: | Ra 70/80/90 optional | Ingress protection code: | IP 67 |
| Operating Temperature Range: | -40℃ to 50℃ | Mech. impact protection code: | IK10 |
| Mains Voltage: | 90～305V AC 50-60Hz | Dimensions: | L580 * W295 * H295 mm |
| Output Voltage: | DC 168 V | Warranty: | 5 Years |
| Output Current: | 3.8 A | Net Weight: | 7.5 KG |
| Power Efficiency: | 95% | Color: | Black / White / Grey |
| Total Harmonic Distortion: | < 15% |
Enkarl Production Line
To meet marketing needs, Enkarl has established its branch in Shenzhen to provide a one-stop lighting solution service, including LED lighting design and lighting installation. As a result, we have successfully finished the 2019 WTA project, LTA project, Olympic size pool swimming project and many schools and club lighting projects.
Enkarl Outdoor LED Lights Certificates
In compliance with stringent test standards, all Enkarl’s products are tested and certificated by CNAS/CRM/A2LA/NVLAP approved lab. Test contents include photometry ( LM79/LM80), thermal management (TM21), performance, blue light hazard, electrical and electromagnetic compatibility, vibration, water-proof, impact resistance.
✅ IEC 60068-2-6 / IEC 60529 / IEC 62262 / EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547 / EN 60598 / EN 62493 / AS CISPR15
