Arias Asymmetrical LED Stadium Floodlight 200W
Key Features:
- 10°/30°/60°/90°/80*150°/Asymmetric 45°/ Asymmetric 60° on optional
- Individual modules rotatable to maximum lighting coverage
- Horizontal Installation, high-quality floodlight
- Lumileds 5050 LED + Meanwell Driver with High efficiency 150 lm/w
- AkzoNobel Powder coating for maritime application, super anti-corrosion;
- IP67 water-proof floodlight; IK 10 anti-impact floodlight
- CCT ranges from 2700-6500K, can be golden floodlight, warm white floodlight and white floodlight
- Smart remote control LED flood light supports Dali, DMX, Zigbee, Wifi system
- RGB LED floodlight; RGBW LED floodlight
Arias Asymmetrical LED Stadium Floodlight
The Arias Asymmetrical LED Stadium Floodlight offers outstanding light distribution, amazing co-efficiency and high utilization while minimizes waste light. It is an innovative LED stadium lighting concept that takes the asymmetric floodlight into the next step.
It is a perfect LED floodlight solution delivering precise lighting and allowing your neighborhood a welcomed curtain of dark.
Arias supports the latest TV broadcasting standards and earns reputations as good as Musco lighting in the 2019 WTA Guang Zhou Open.
When combined with control applications such as the Zigbee and Dali these LED floodlights can simplify the delivery of the right illumination by scheduling or through real time adjustments and can be used to create customized light shows before during and after the main event.
The Arias Series LED Stadium Floodlight Offers a Range of Features and Benefits
A Solution to Light Pollution
More and more sports facilities and recreational grounds are having to adhere to stringent criteria over the permissible level of light pollution. The Arias Series provides asymmetric distribution to counteract light overspill giving you complete control over surrounding areas. The slider at the right side is an example of what can be achieved. It is a perferct football field floodlight, especially for 18 m high mast field.
Photometric Diagram
Key Features

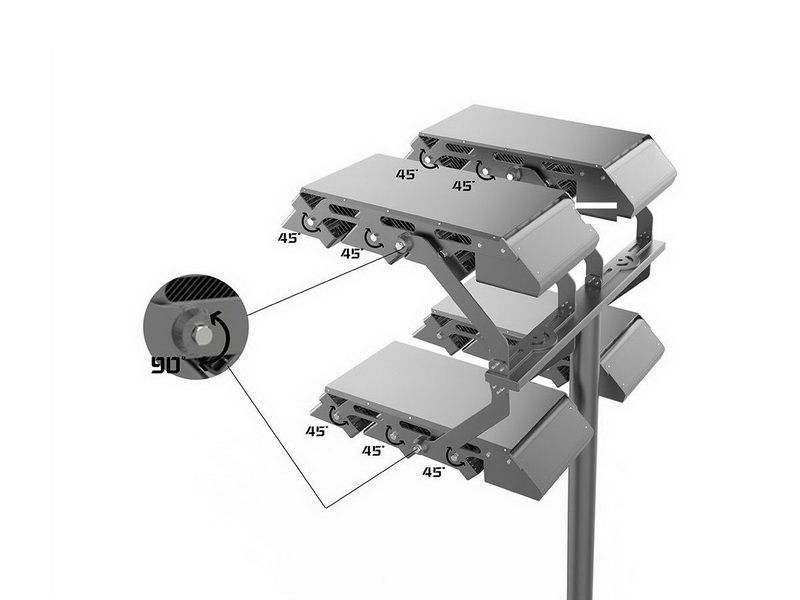

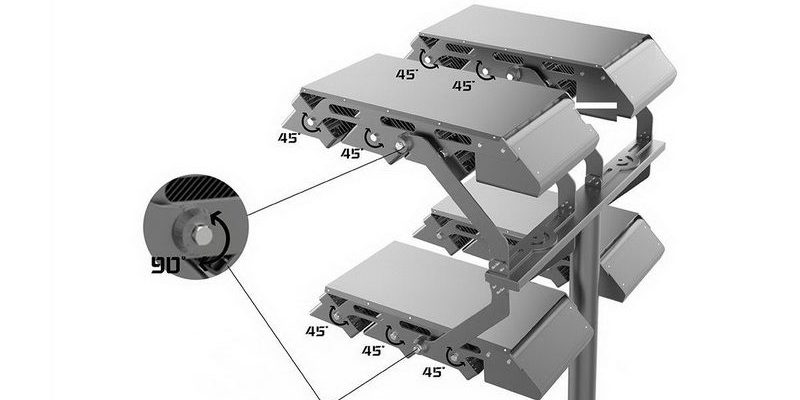

- Individual adjustable 45° inclined modules allows more direct downward light to counteract the over spillage to local residents.
- Sharp Cut-off hood avoids direct eyes-contact with light source, anti-glare design.
- Amazing uniformity provides maximum possibility for accurate ball-hitting thus to improve entertainment for both players and spectators. Clearly rendering of the facial expression, it lights sports enthusiasm both on site and on website.

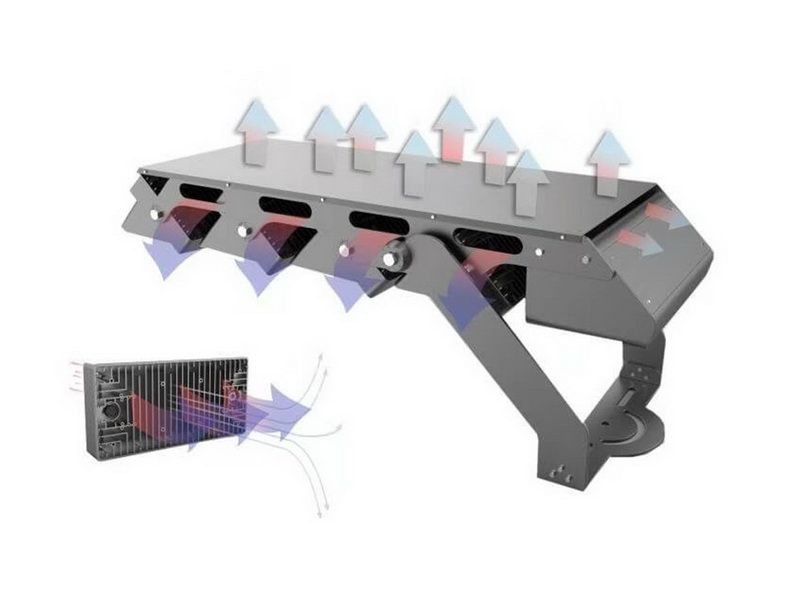

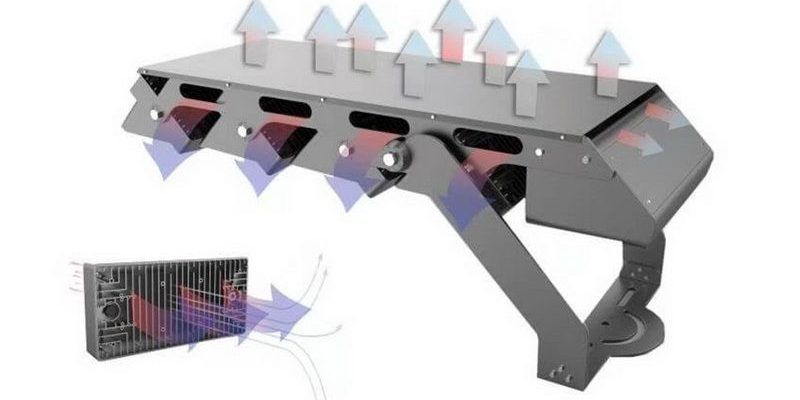

- Drivers unit are well positioned at the backside of the housing to improve thermal management. Demountable driver’s box is on optional.
- Aluminum covers at the housing to protect modules from direct sunlight, avian or environmental damages.
- Anti condensation breather- prevents moisture build up inside the housing as a result of ambient temperature fluctuations.
- SUS 316 stainless steel brackets on request.
- Bracket+/- 90 ° rotatable from X-bar.
- Slot fasten design for easy installation.
- Accurate adjustable increments for easy aiming and secondary lock nut.
- Supports Dali/Zigbee/DMX Control.
- AkzoNobel maritime powder-coated surface，anti-corrosion treatment
Suitable Applications
- Soccer Field lighting
- Tennis Court lighting
- Hockey Courts lighting
- Archery Club lighting
- Gold Range lighting
- Bowling Club lighting
- Rugby Field lighting
- Padel Club lighting
- Basketball Field lighting
- Badminton Court lighting
- Baseball Court lighting
- Dome lighting
- Coastal Area lighting
- Car Parks lighting
- Outdoor Area lighting
Benefits
- Low initial cost
- Low energy management cost
- Easy installation and maintenance
- 5 Years product warranty
- FREE Lighting Calculation
The Arias Asymmetrical LED Stadium Floodlight - The Best Choice for Your Stadium Lighting Solutions.
If you require a professional outdoor lighting solution for yards, tennis courts, basketball fields, soccer fields, parliament MUGA fields, rugby fields, cricket fields, baseball fields, school playgrounds, ports, ships, stadiums, cranes, or other open areas, we can provide the best solution.
We will provide you with a Free Lighting Calculation and installation guidance.
Product Specifications
Arias Asymmetrical LED Stadium Floodlight Specifications
| Power | 200 W | Beam Angle | 10°, 30°, 60°, 90°, 30×110°, 30×120°, 80×150° |
| LED Luminous Efficiency | 155 lm/w | Colour Temperature | 2700K – 6500K |
| Lumens | 31,000 lm | Life Span | ≥ 60,000 hours |
| Power Source | Inventronics | Working Temperature | –40°C ~ 70°C |
| Light Source | Lumileds 5050 | IP Rating | IP67 |
| LED QTY | 160 pcs | Dimensions (W x H x D) | 400 x 205 x 115 mm |
| Input Voltage | AC90 – 305V, 50/60Hz | Weight | 13 kg |
| Colour Rendering Index | Ra＞70 / 80RA | Warranty | 5 Years |
Enkarl Production Line
To meet marketing needs, Enkarl has established its branch in Shenzhen to provide a one-stop lighting solution service, including LED lighting design and lighting installation. As a result, we have successfully finished the 2019 WTA project, LTA project, Olympic size pool swimming project and many schools and club lighting projects.
Enkarl Outdoor LED Lights Certificates
In compliance with stringent test standards, all Enkarl’s products are tested and certificated by CNAS/CRM/A2LA/NVLAP approved lab. Test contents include photometry ( LM79/LM80), thermal management (TM21), performance, blue light hazard, electrical and electromagnetic compatibility, vibration, water-proof, impact resistance.
✅ IEC 60068-2-6 / IEC 60529 / IEC 62262 / EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547 / EN 60598 / EN 62493 / AS CISPR15
